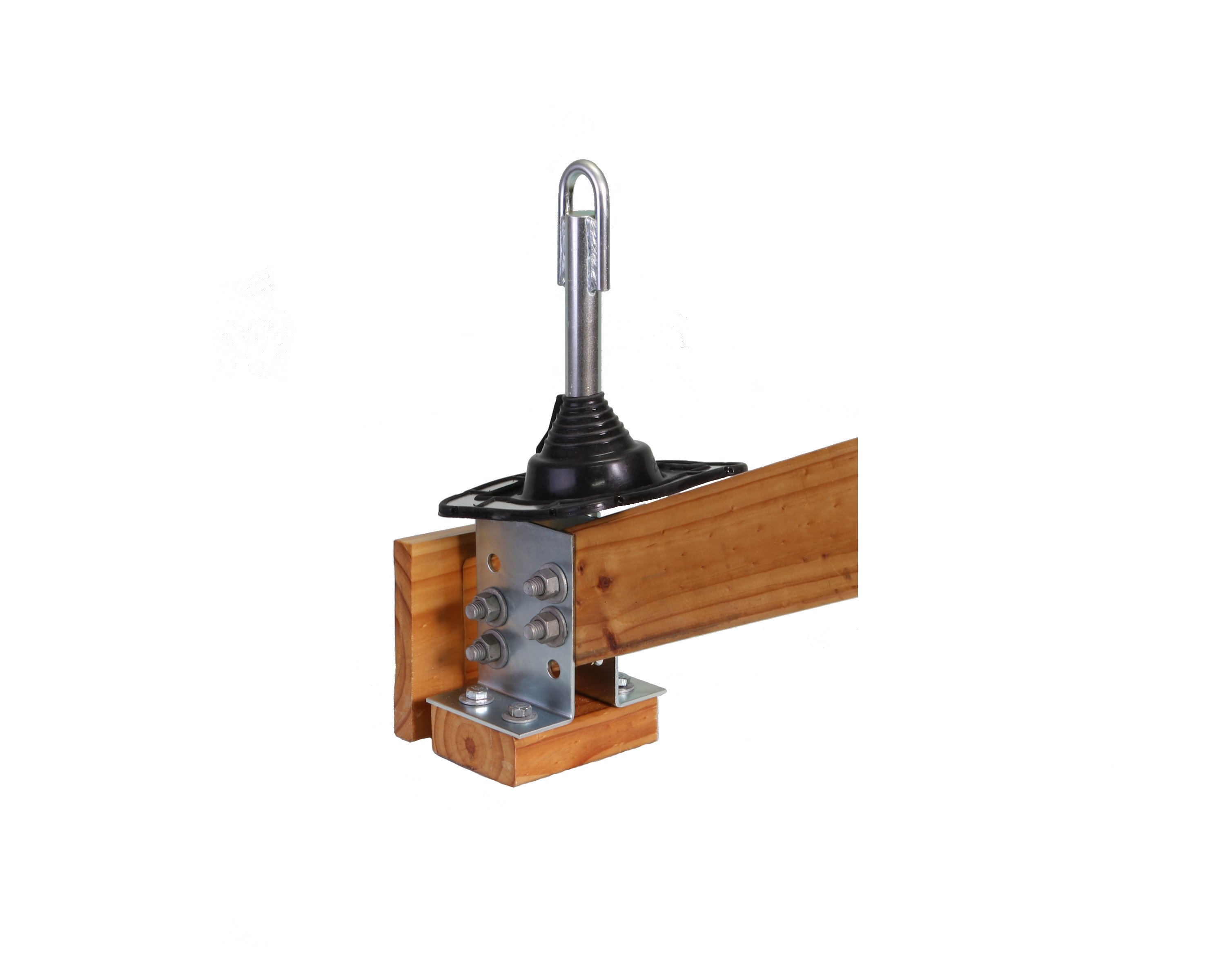

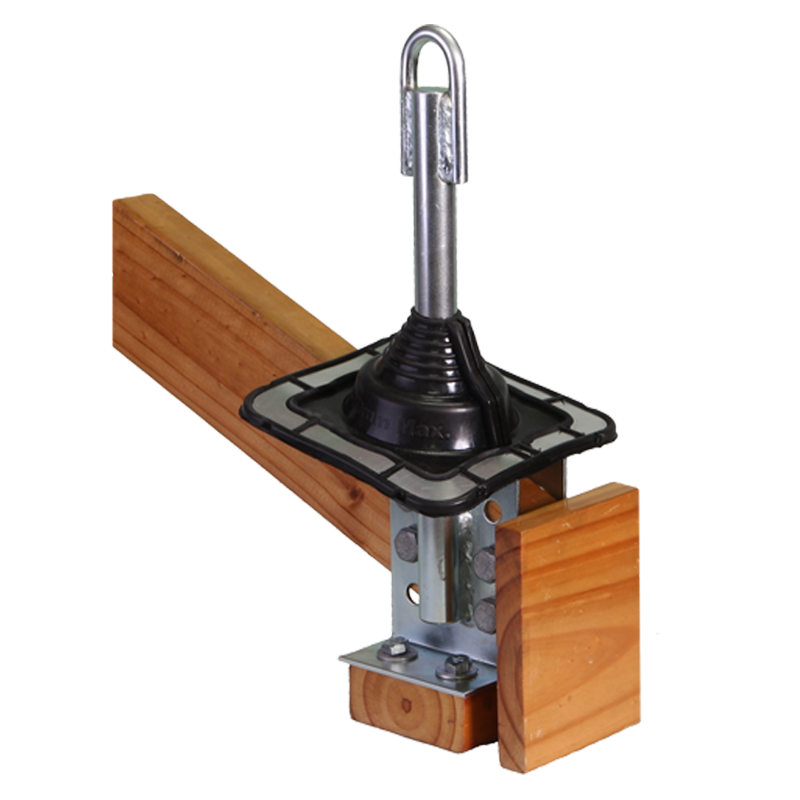

Shade Sail Anchor
- Bolts attach brackets to rafter and top wall plate for extra strength and structural integrity
- Proudly Australian designed and made in Australia by a proud Australian owned company
Care Instructions
Roof Extenda recommends painting brackets before installation. Anchor is to be cleaned and inspected yearly and re-coated if required.
Note
Local Council or Shire approval may be required prior to construction.
Roof Extenda accepts no responsibility for the type of construction undertaken.
The Shade Sail Anchor has been strength tested. When bolted in the top holes, the Anchor can deform at 2.3kN of force. When bolted in the middle holes, the Anchor can deform at 1.3kN of force.
We advise you carefully evaluate the shade sail size, location, wind category & installation design before purchasing.

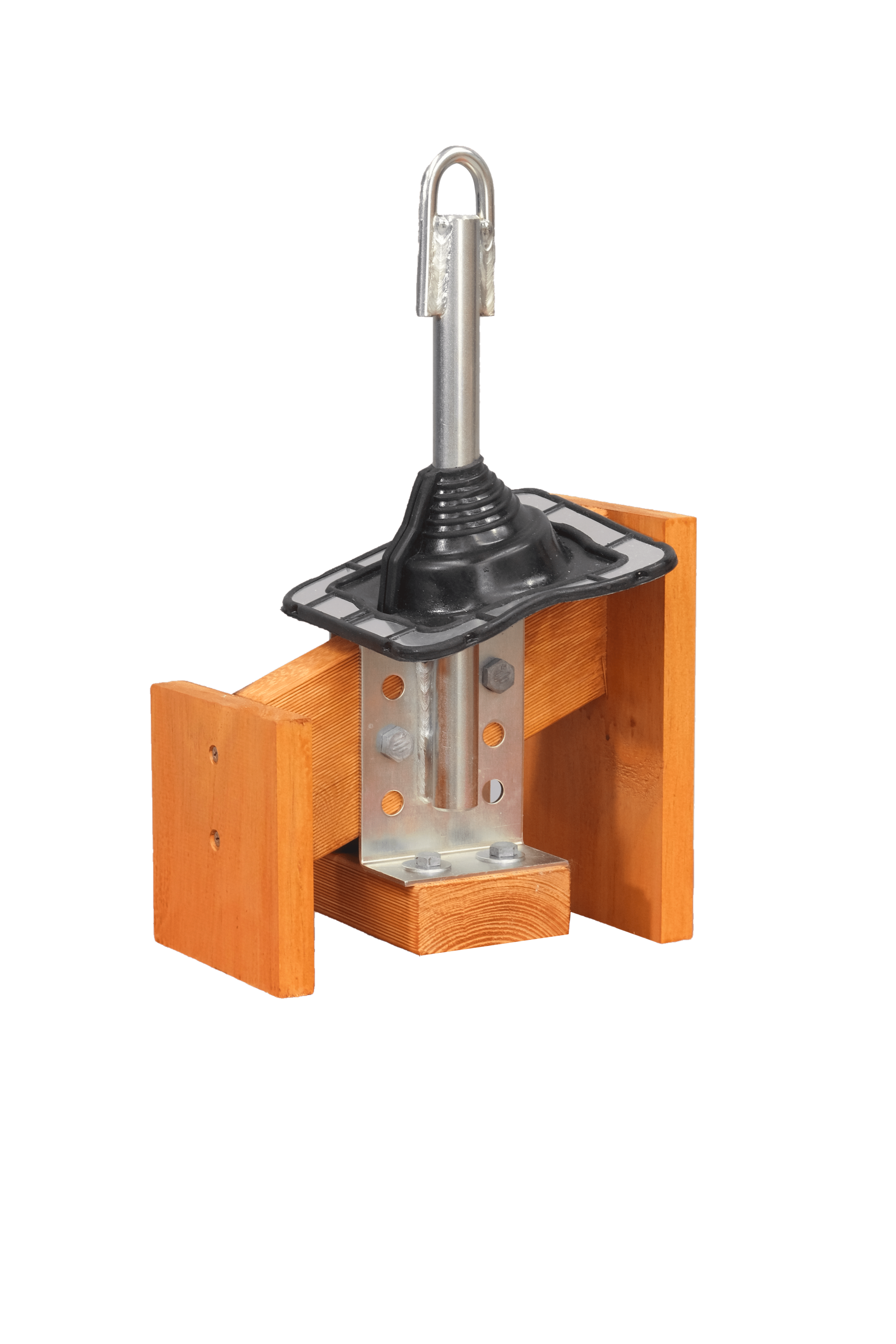

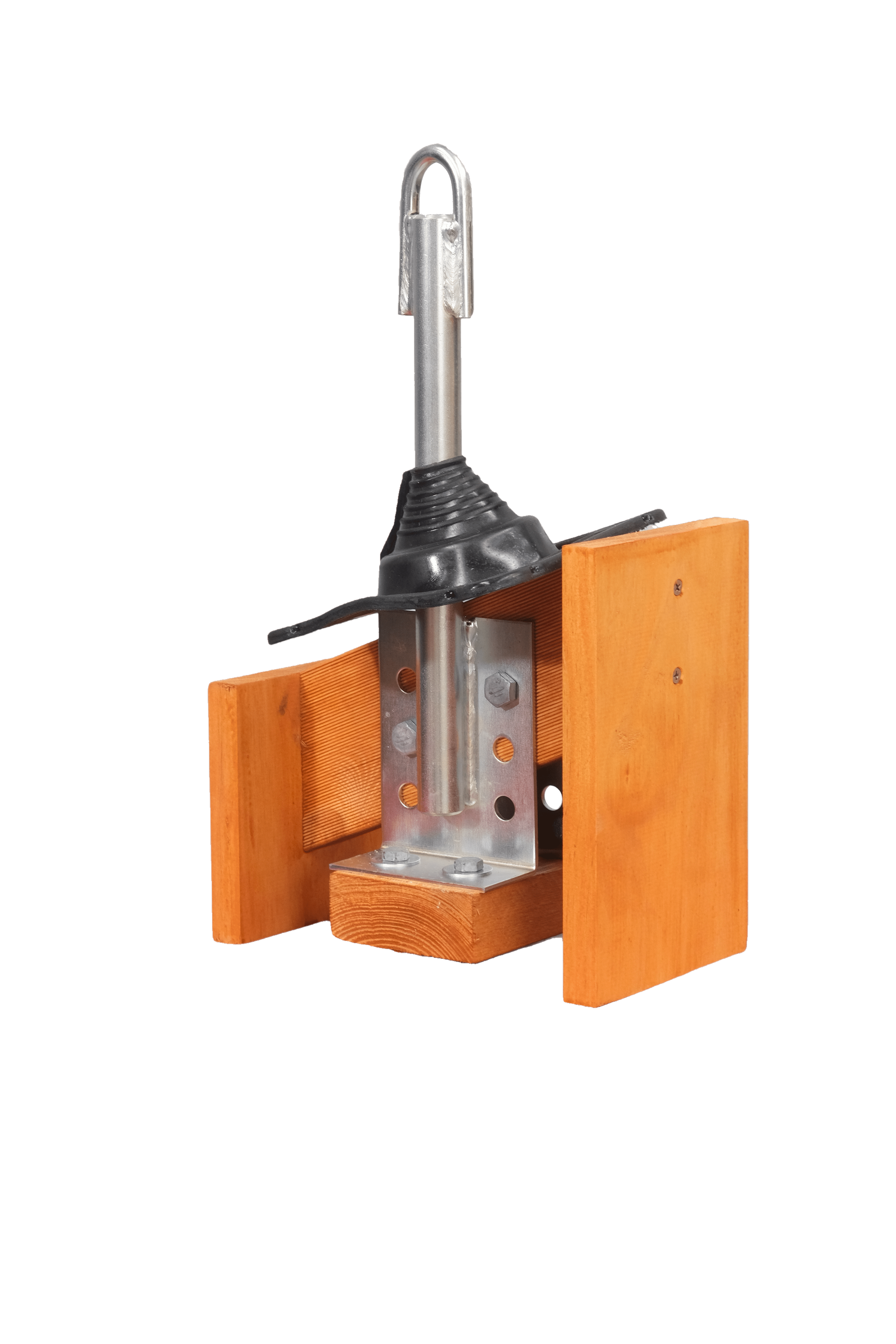

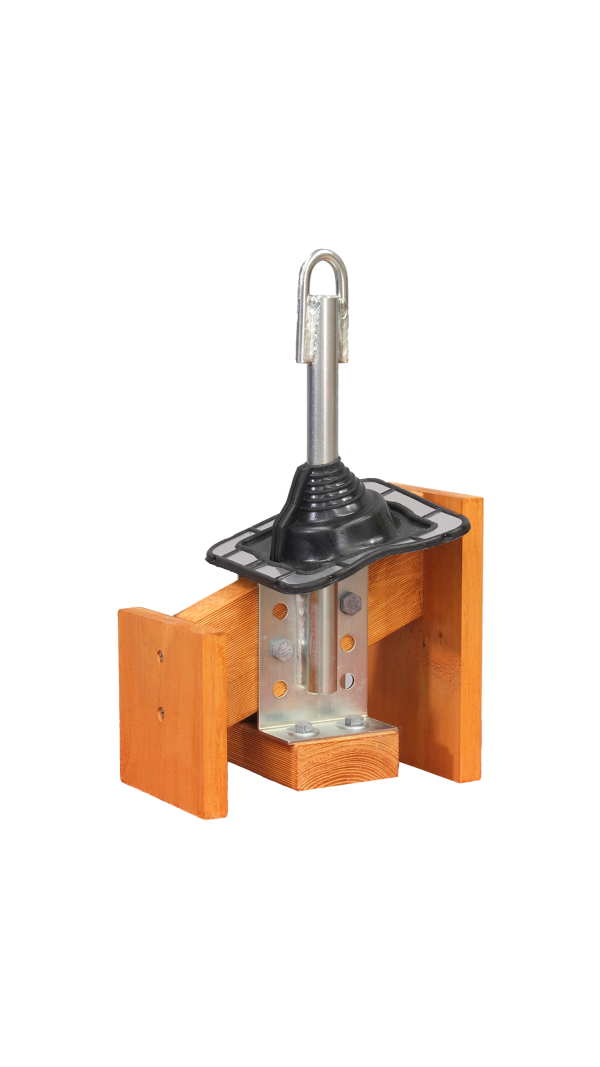

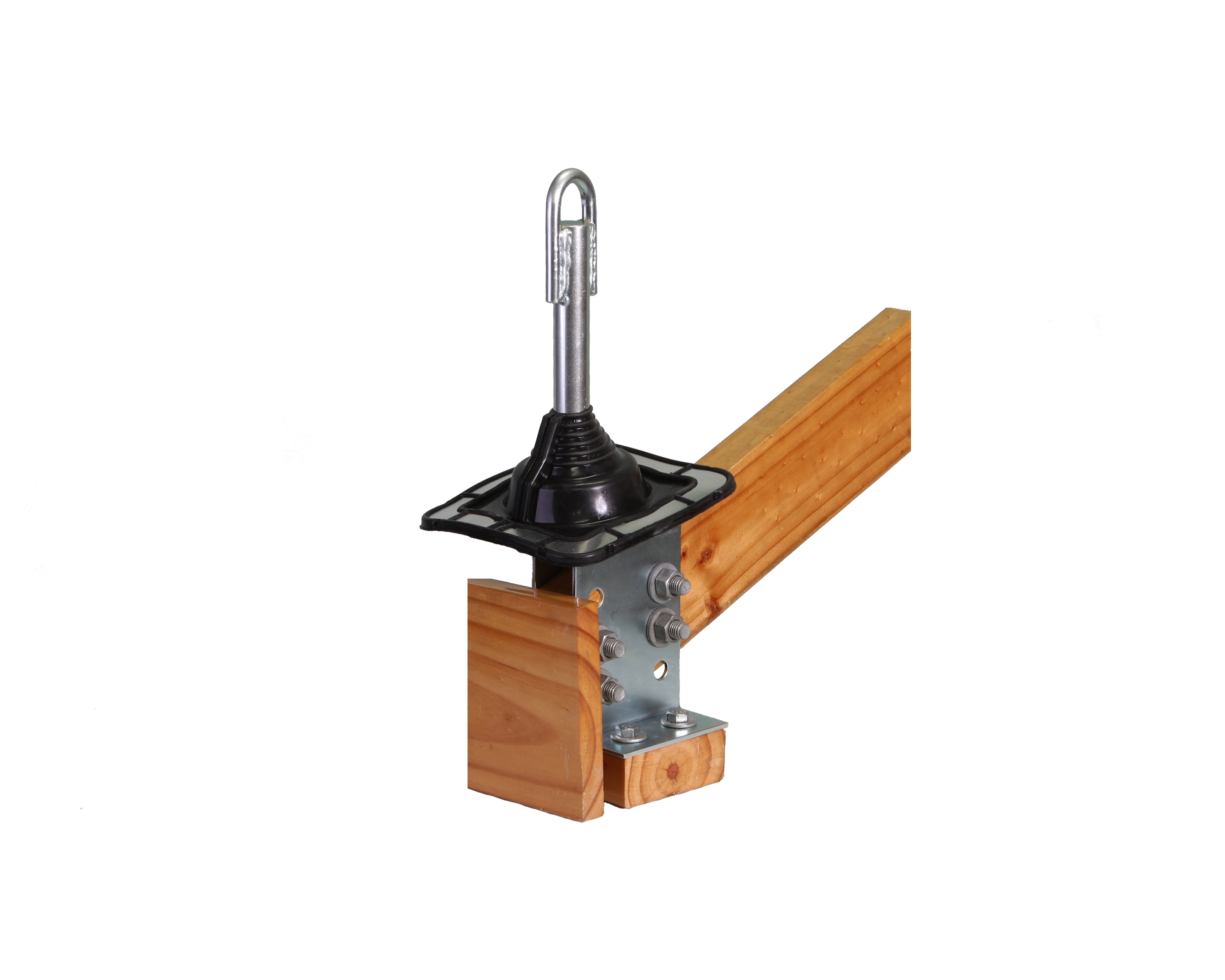

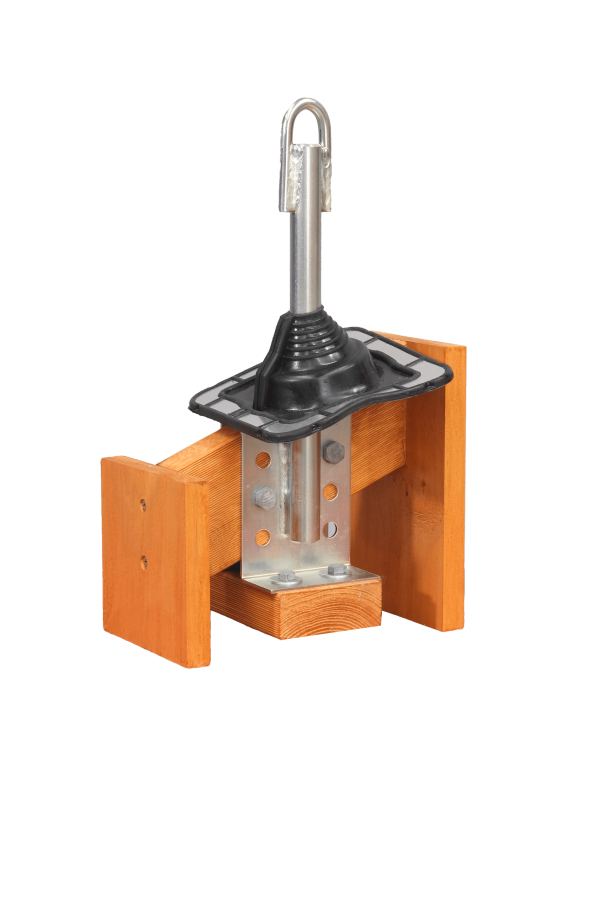

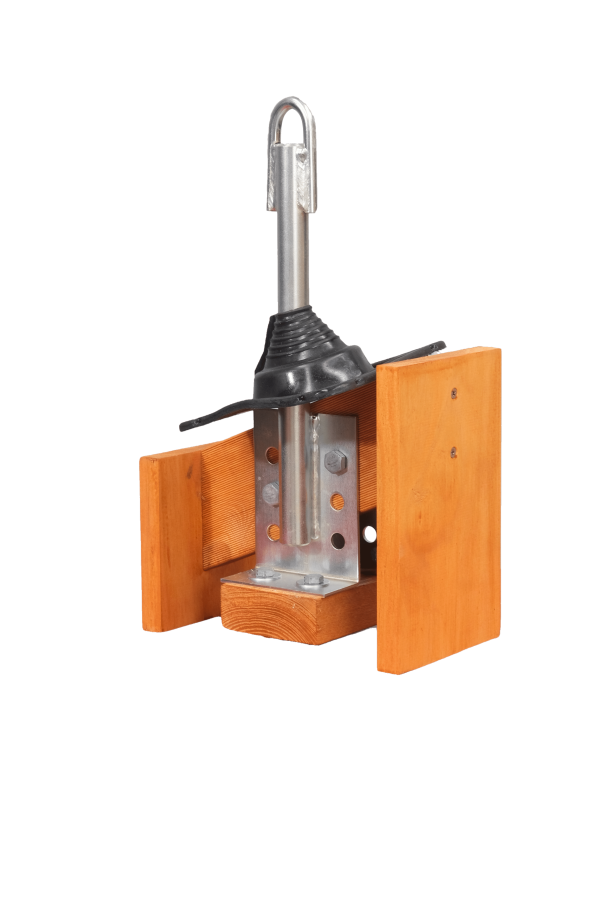

FlashRite Weather Seal (Black)
- Suitable for tin roofs
- EPDM Black certified for installation to BAL 12.5 rated roof
- EPDM will withstand constant temperatures of -40oC to 115oC
- Suitable for both standard and retrofit application
- Polymer is Ozone and UV resistant
- Base size: 164 x 164mm
- Pipe size: 10-90mm (25o roof pitch) 10-70mm (45o roof pitch)

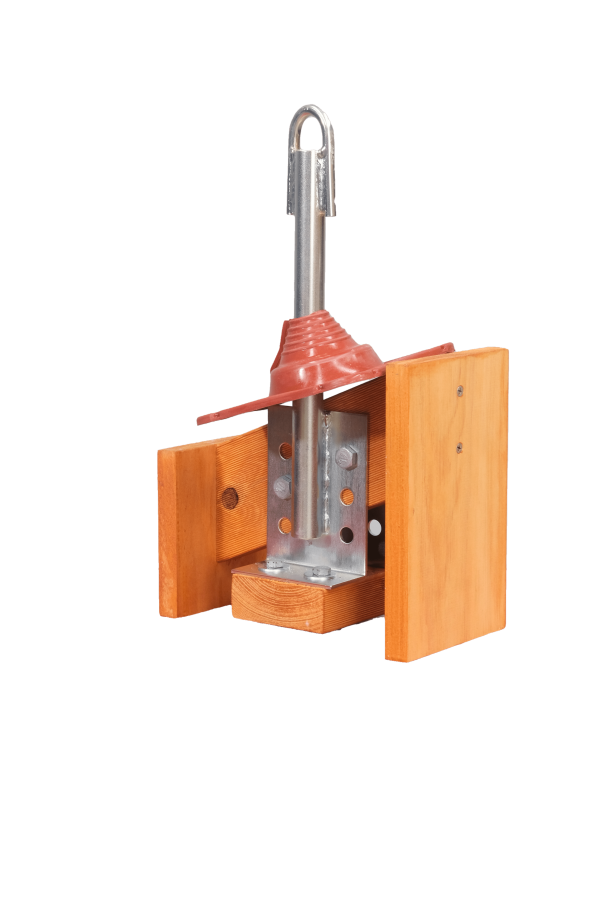

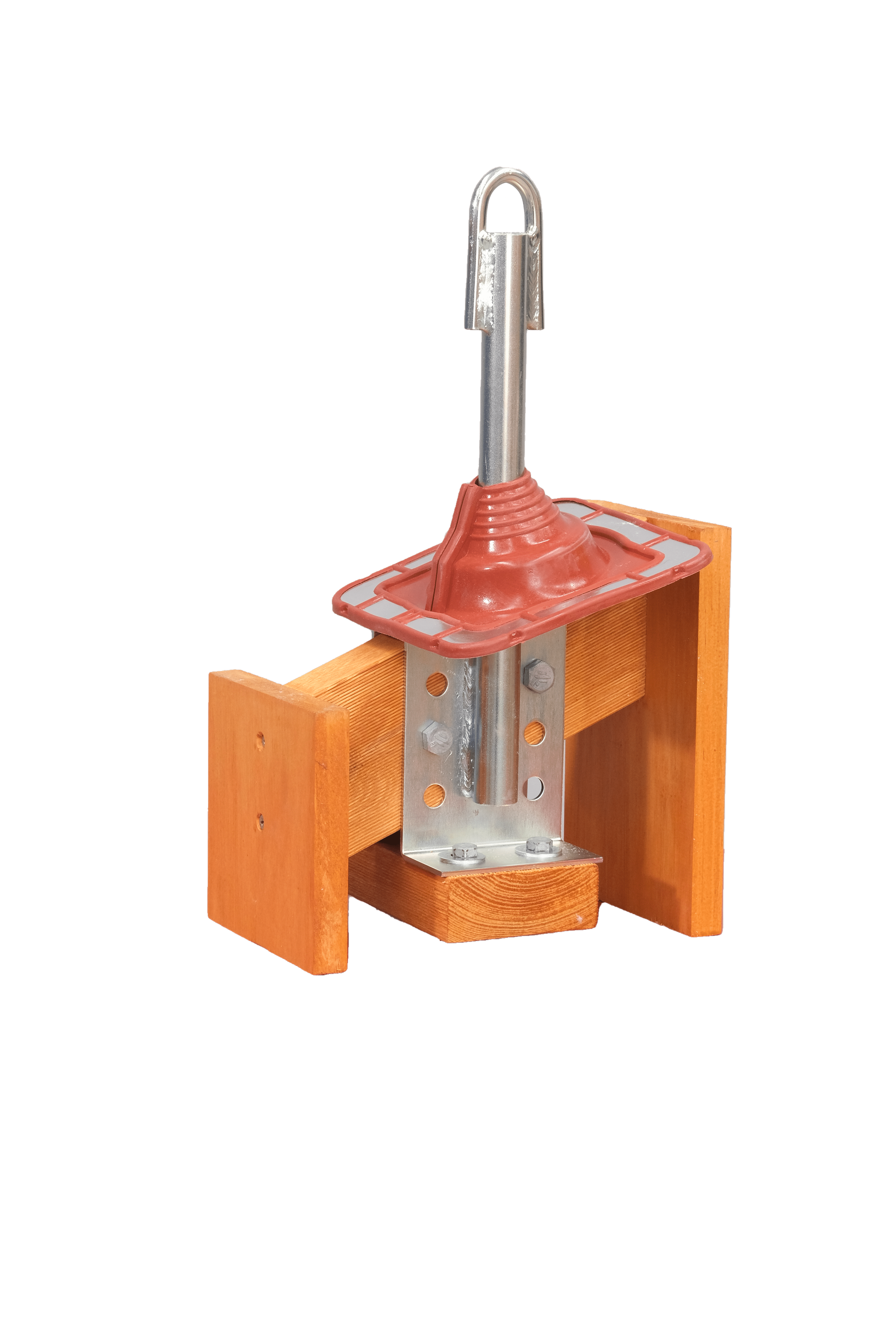

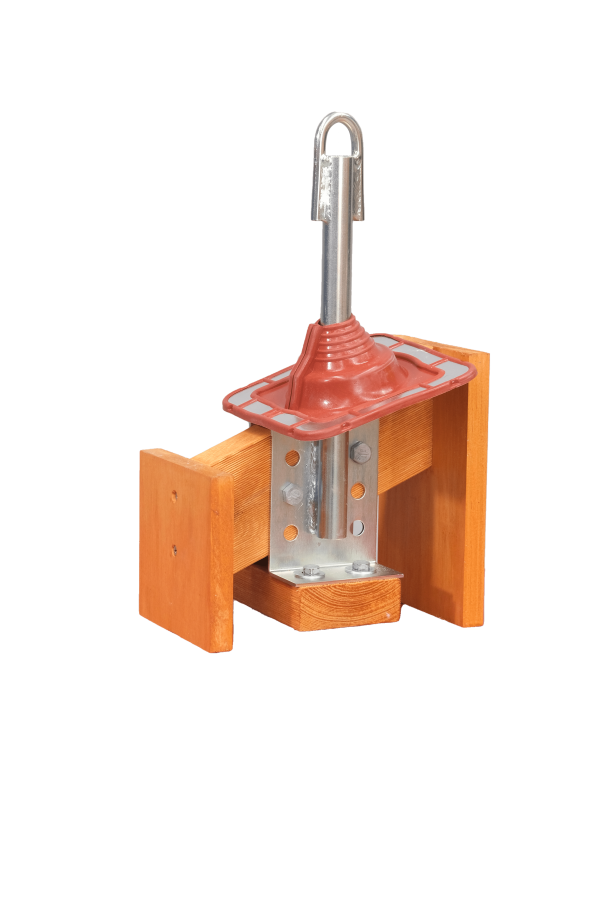

FlashRite Weather Seal (Red)
- Suitable for tin roofs
- Red silicone certified for installation to BAL 29 rated roof
- Red silicone will withstand constant temperatures of -50oC to 200oC
- Suitable for both standard and retrofit application
- Polymer is Ozone and UV resistant
- Base size: 164 x 164mm
- Pipe size: 10-90mm (25o roof pitch) 10-70mm (45o roof pitch)

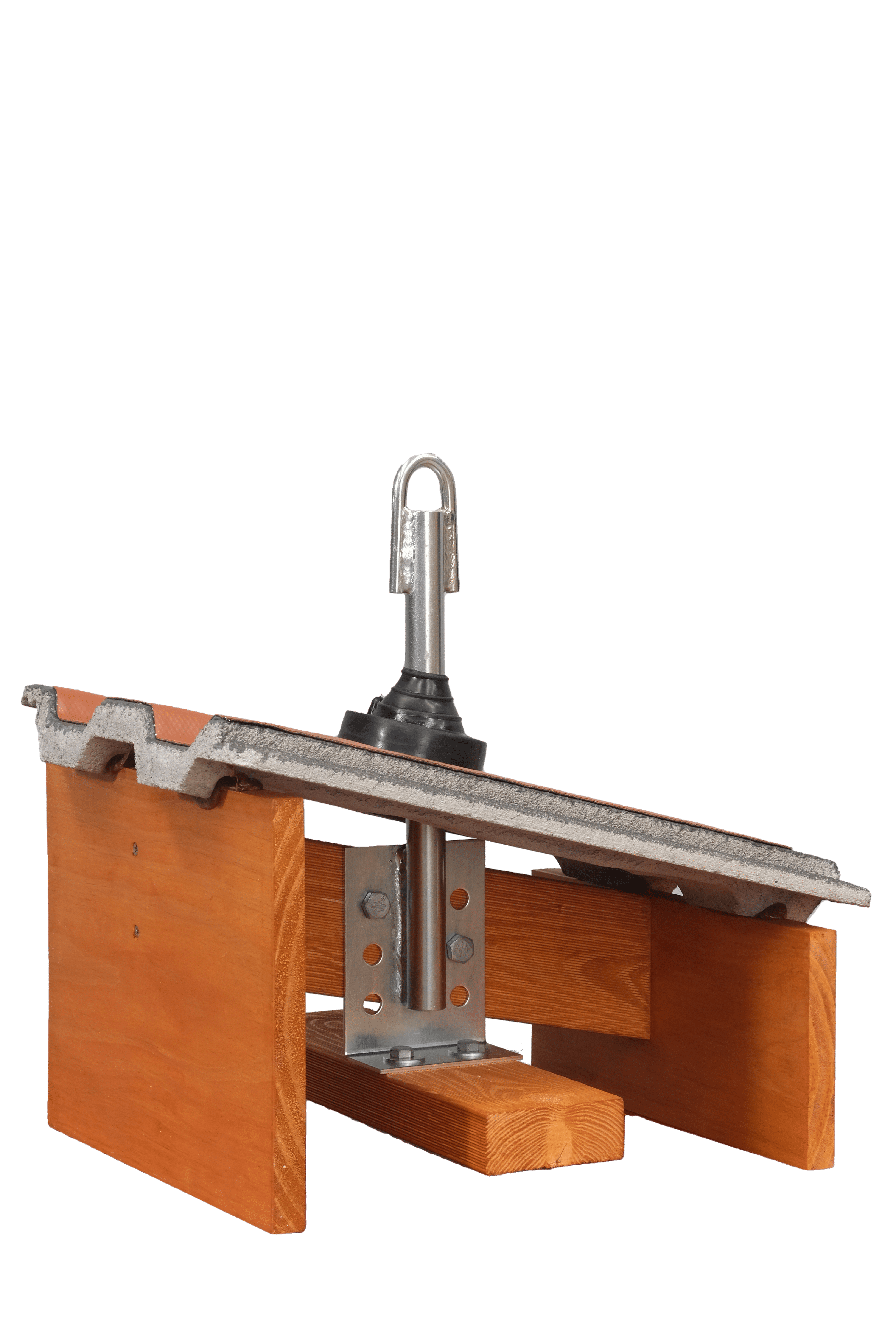

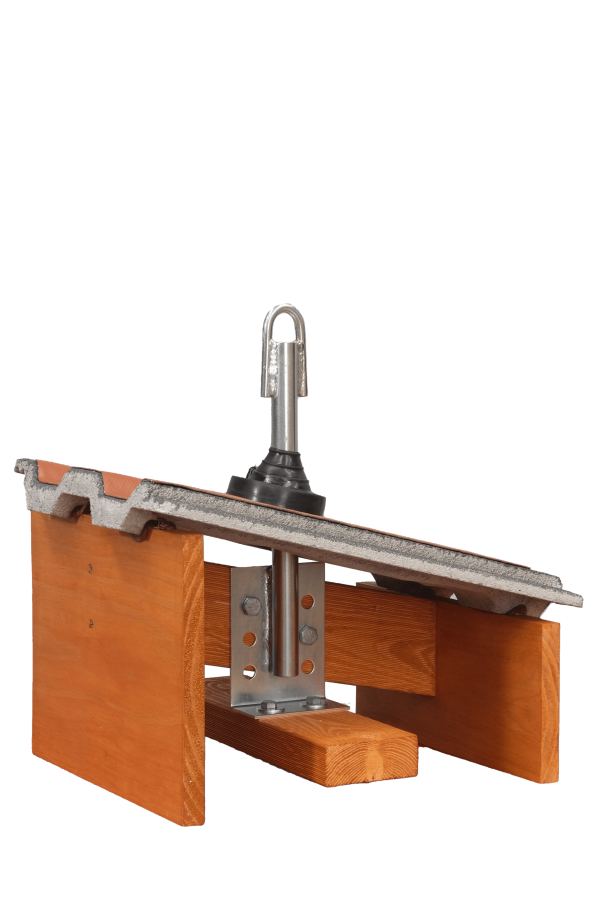

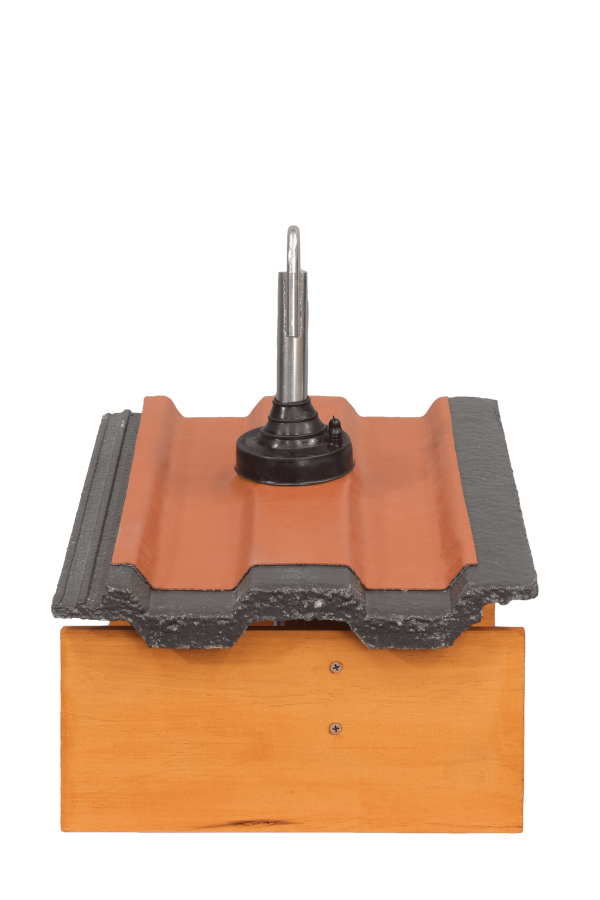

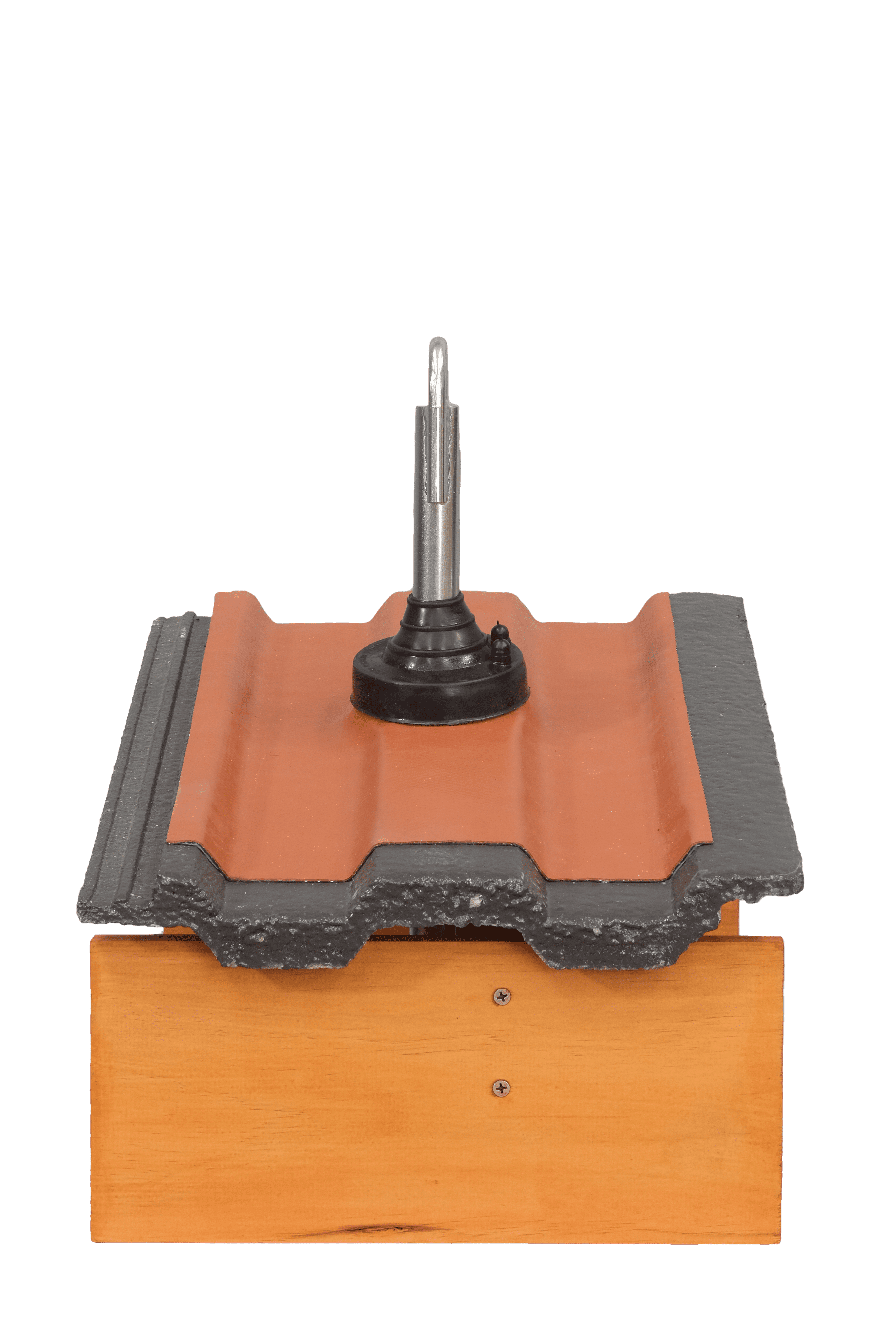

Flexatile
- Suitable for tiled roofs
- Pipe size 5-50mm (25o roof pitch) 5-40mm (45o roof pitch)
- Base size 450 x 280mm
- Light weight, non toxic, non corrosive
- Polymer is Ozone and UV resistant
- Drinking water safe
- Can be painted to match roof colour with acrylic house paint
General Installation
- Remove roofing tiles or lift roof sheet to achieve an opening to fit the Roof Extenda Shade Sail Anchor.
- Bolt the section with steel rod and the backing plate to the rafter using 4 x M12 bolts. Secure both brackets to the top plate with 2-M10 coach screws to each bracket.
- Replace roof tiles or roof sheet, cutting a hole to allow the loop & roof to penetrate the roof.
- Slide Weather Seal over the loop and down the shaft. Ensuring roofing area is clean and dry, mark the position of the Weather Seal on the roofing. Apply clear neutral cure silicone to the area marked, press and shape the Weather Seal into the roof profile, finish with a bead of silicone to all edges of the Weather Seal to complete the fitting.
Care Instructions
Shade Sail Anchor to be cleaned and inspected yearly and re-coated if required.
FlashRite Weather Seal
If using a FlashRite weather seal, slide it over the loop and down the shaft. Ensure roofing area is clean and dry, mark the position of the FlashRite weather seal on the roofing. Apply clear neutral cure silicone inside the area marked, press the FlashRite weather seal into position and finish with a bead of silicone to the edges of the FlashRite weather seal to complete the fitting.
Flexatile
If using a flexatile, remove the middle lining from the underside of the flexatile. Cut the rubber cone at least 15mm smaller than the Shade Sail Anchor bracket OD with a sharp knife or scissors. Ensure tiles are cleaned before installation. Lubricate the bracket with water and slide the flashing down the bracket. Form an anti-capillary fold at top of base sheet. Remove the protective backing from the underside of the flashing, that is covering the butyl adhesive strips. Hand form the base all around the tile and apply pressure to the butyl adhesive side strip.
Installation Guide Shade Sail Anchor Roof Extenda
Roof Extenda works with its manufacturers to produce a quality product. Roof Extenda has both electroplated mild steel & 316 marine grade stainless steel brackets available.
The zinc electroplated brackets have a top coating. Roof Extenda cannot provide any guarantees on the lifetime of the brackets and recommends the following:
- Roof Extenda recommends a qualified installer to seek advice from a coating manufacturer if brackets are to be coated prior to installation.
- Check brackets annually.
- Clean and coat if required with a cold galvanized paint which can be purchased at most hardware stores. This can be easily applied to the exposed surfaces of the brackets.
- If brackets show signs of corrosion they can be replaced by a builder.
If installing Roof Extenda shade sail anchor in a highly corrosive area we recommend the installer has the bracket coated in an appropriate anti-corrosive coating.
